| Нормальное общее сопротивление: | 100-1 МОм | Устойчивость к сопротивлению: | ±25% |
|---|---|---|---|
| Вариация сопротивления контакта: | 5% | Выдерживать напряжение: | 50 В |
| Эффективное электрическое путешествие: | 240±20° | Расклассифицированная ваттность: | 0.15W |
| Диапазон рабочих температур: | -40~+100℃ | TCR температурный коэффициент сопротивления: | ±250PPM/℃ |
| Ротационная жизнь: | 200 кругов | Общий механический угол поворота: | 270±20° |
| Вращательный крутящий момент: | 1~12 мН*м | Сила концевого упора: | ≥15 мН*м |
FEATURES:

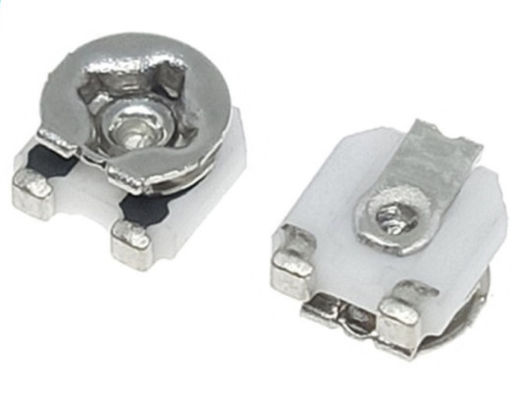

• Space Saving Size 1.3mm in height
• With stopper
• Easily adjusts with standard screwdriver.
• Metal-glaze resistance element gives excellent stability and protection against environmental factors.
• Can be mounted to a circuit board with adhesive.
• Designed for reflow soldering.

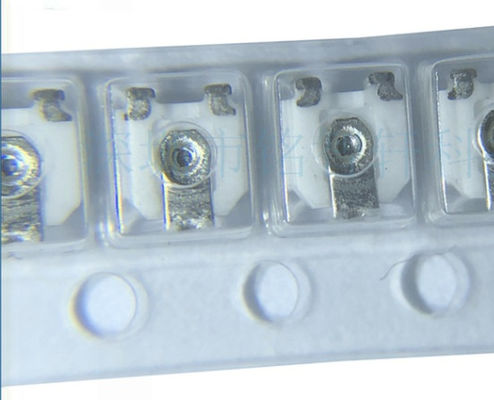

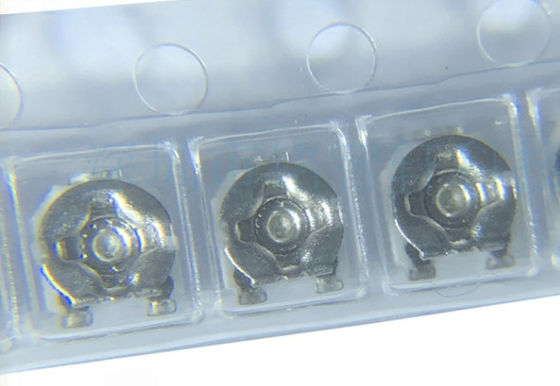

• Supplied in 8mm tape for automatic assembly equipment.
• Conform RoHS
• APPLICATIONS : Video equipment, industrial equipment and other general electronic equipment.
SPECIFICATIONS:
| Operating Temperature Range | －40 to 100℃ |
| Rated Power | 0.15Ｗ at 70℃ |
| Maximum Rated Voltage | AC50V, DC50V |
| Nominal Total Resistance | 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ |
| Total Resistance Tolerance | Within ±25% of the nominal total resistance |
| Resistance Taper | B(Linner Taper :JIS 0B) |
| Resistance Temperature Coefficient | Within ±250ppm/℃ |
| Total Rotational Angle | Endless(effective rotational angle 250±20°) |
| Rotational Torque | 1 to 12mN・m |
| Endurance(Sliding) | 20cycles(10cycles at 100Ω) |
| Weight at 1 pcs | 40mg |
APPLICATIONS:
CAMERA built-in VCR, 8mm VCR, VCR camera, still camera, headphone stereos, LCD television, disk drive, bar code equipment, radar detectors, hand held equipments.
REFLOW SOLDERING REQUIREMENTS:
• Manual Soldering: In case of soldering by a soldering iron, it shall be finished within 3 seconds and the temperature of the tip of the soldering iron shall be 350℃ max.
• Flux Rinsing: After reflow soldering operation, part may be used without rinsing, if flux is well controlled. In case flux rinsing is done, flux shall be removed sufficiently.
External dimensions:
Packing specification:
